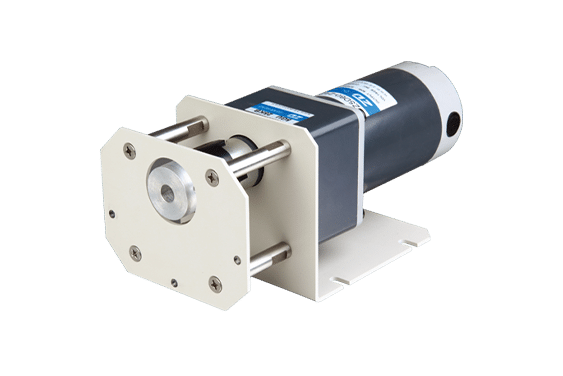

90-2 is a OEM peristaltic pump for integration into instruments and automated liquid-handling equipment. Review its operating range and compatibility for your process.
| Parameter | Value |
|---|---|
| Motor type | 90 gear motor |
| Control circuit board | No |
| Max. flow rate (Single Channel) | ≤9167ml/min |
| Pump head model | No(Need to purchase separately) |
| Pump speed | Fixed speed |
| Control mode | No |
| Control feature | No |
| Dimensions (L x W x H) | Soleplate installation: 269×130×123(mm) Panel installation269×130×145(mm) |
| Installation method | Panel installation as standard. Soleplate installation can be customized. |
| Power supply | DC 12V/90W or DC 24V/90W AC 220V/90W |
| Operating temperature | 0℃-40℃ |
| Relative humidity | ＜80% |
Confirm the required operating range, fluid path and compatible configuration for this OEM peristaltic pump with ProfTek before final selection.
Manufactured by Longer Pump. ProfTek supplies and supports Longer Pump products across Australia and New Zealand.
