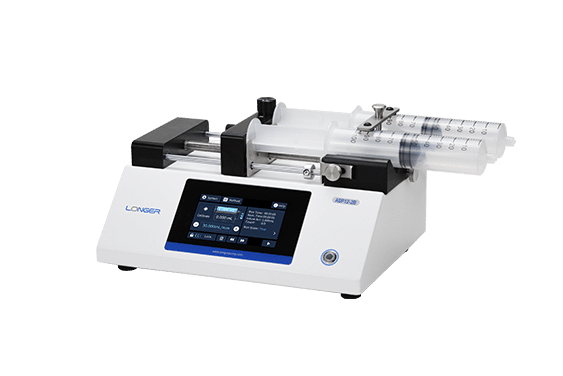

ASP12-2B is a laboratory syringe pump for controlled liquid handling in laboratory and research workflows. Review its operating range and compatibility for your process.
| Parameter | Value |
|---|---|
| Product Type | Integrated design |
| Number of Syringes | 2 |
| Compatible Syringe Sizes | 0.5uL-150mL |
| Reference Flow Range | 0.0033nL/min-226mL/min |
| Display | 4.3 inch colour LCD for flow rate and other parameters |
| Operating Mode | Single infuse; multiple infuse; single withdraw; infuse/withdraw (continuous); withdraw/infuse (continuous) |
| Programmable Function | N/A |
| Control Method | Touchscreen control, external control, communication control, footswitch control, LabVIEW control |
| Maximum Stroke Length | 140 mm |
| Stroke Resolution | 0.0326um/microstep |
| Linear Speed Range | 0.416um/min-180mm/min |
| Stroke Control Accuracy | ≤±0.35% (When travel≥30% of stroke) |
Confirm the required operating range, fluid path and compatible configuration for this laboratory syringe pump with ProfTek before final selection.
Manufactured by Longer Pump. ProfTek supplies and supports Longer Pump products across Australia and New Zealand.
