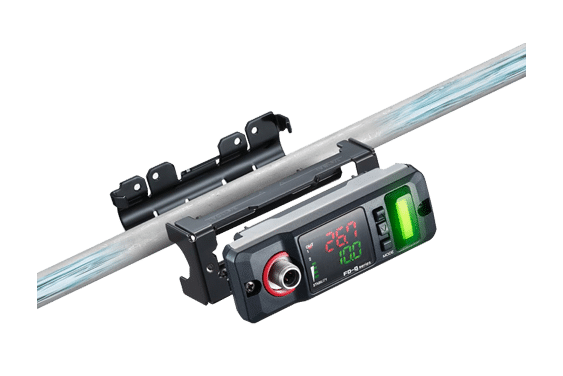

A clamp-on flow sensor for monitoring liquid movement through compatible metal or resin pipe without cutting into the process line.
| Parameter | Value |
|---|---|
| Models | FD-Q10 and FD-Q20 |
| Maximum rated flow ranges | 20, 30, 60 or 100 L/min, depending on model and pipe size |
| Power supply | 20–30 V DC |
| Current consumption | 100 mA or less, excluding load |
| Analogue output | 4–20 mA or 0–20 mA selectable |
Select the FD-Q10 or FD-Q20 variant against the pipe material, outside diameter and required maximum flow range.
Contact ProfTek for current technical documentation.
Manufactured by Longer Pump. ProfTek supplies and supports Longer Pump products across Australia and New Zealand.
