Name: Longer Pump FU5B
Brand: Proftek

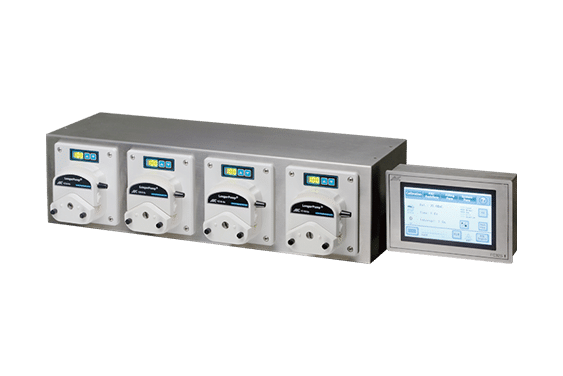

Longer Pump FU5B

FU5B is a peristaltic filling system for controlled liquid handling in industrial and production workflows. Review its operating range and compatibility for your process.

Key applications

Biopharmaceutical Manufacturing
Food & Beverage

Technical benefits

Peristaltic pump filling system FU5B-1 consists of 5 sets drive units, 304 stainless steel housing with good corrosion resistance.
Controller FC32S-1 and dispensing system FU5B-1 are separated, to allow flexible mounting way. Controller adopts 7-inch industrial touchscreen interface to operate easily and friendly, to control max 32channels.
Compatible pump heads are YZ1515x, YZII15, FG15-13, YZ2515x, YZII 25, FG25-13 and DMD 15-13.
Each channel has an independent membrane key and LED display, which can be used to set the channel address and calibrate the dispensing volume when the system is running or stops.

Specifications

FU5B specifications
Parameter	Value
Filling volume	0.1mL~9999.99mL
Filling accuracy	≤±2%
Filling time	0.5s~6000s
Filling cycles	0~999999 (0 means unlimited))
Number of channels	5
Display	7-inch colour LCD for parameters
Work mode	Parallel filling
Control mode	Touch screen control; Footswitch control; External control; Communication control
Calibration	Manual
Calibration method	Calibrate with volume or weight offline; Calibrate with ratio online
Parameter recipe	Can store 5 recipes
External control	start; disable channel

Compatibility

Confirm the required operating range, fluid path and compatible configuration for this peristaltic filling system with ProfTek before final selection.
