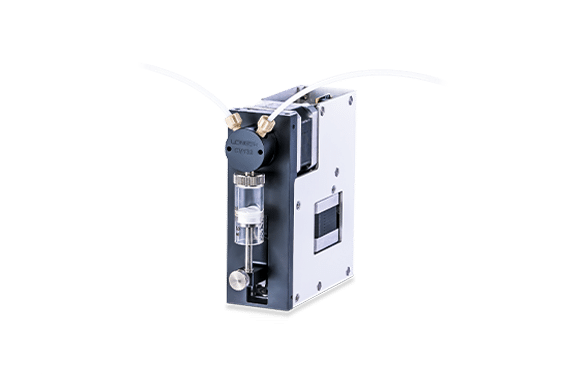

MSP1-CX is a industrial and OEM syringe pump for controlled liquid handling in industrial and production workflows. Review its operating range and compatibility for your process.
| Parameter | Value |
|---|---|
| Channel | 1 |
| Syringe size | 50uL、100uL、250uL、500uL、1mL、2.5mL、5mL、10mL、25mL |
| Accuracy | <=1.0 % (syringe ≥1 mL) |
| Precision | CV≤0.05% at full stroke (with syringe≥1ml) |
| Valve options | 3-port Y valve, 3-port distribution valve, 4-port valve, 6-port distribution valve, 9-port distribution valve, T valve, straight-through valve or distribution valve. |
| Wetted material | Borosilicate glasS, PTFE, PFA, CTFE, ETFE, UHMW-PE, Ceramic |
| Syringe fitting | 1/4"-28 thread |
| Max pressure | 0.68Mpa |
| Travel | 30 mm |
| Time for full stroke | 1.26s-1200s |
| Full stroke | (standard mode):3000 steps, (microstep mode):48000steps |
| Resolution | 3000 steps with 0.01mm in 1 step;48000 microsteps with 0.625um in 1 microsteps |
Confirm the required operating range, fluid path and compatible configuration for this industrial and OEM syringe pump with ProfTek before final selection.
Manufactured by Longer Pump. ProfTek supplies and supports Longer Pump products across Australia and New Zealand.
