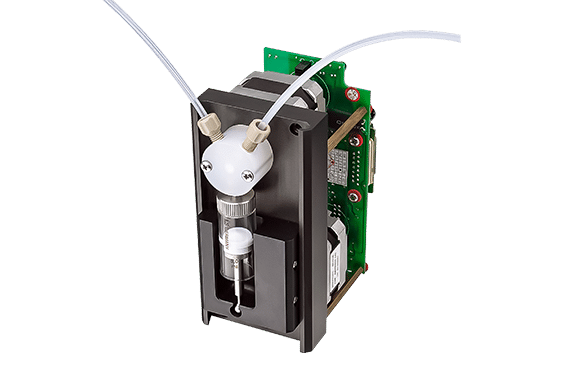

MSP1-D1 is a industrial and OEM syringe pump for controlled liquid handling in industrial and production workflows. Review its operating range and compatibility for your process.
| Parameter | Value |
|---|---|
| Channel | 1 |
| Syringe size | 500μL、1mL、2.5mL、5mL |
| Accuracy | ≤1.0 % (rated stroke) |
| Precision | Repeatability≤0.5%(rated stroke) |
| Valve options | 3 port 120° |
| Wetted material | Borosilicate glass, PTFE, PCTFE |
| Syringe fitting | 1/4"-28 thread |
| Max pressure | 0.68Mpa |
| Travel | 30 mm |
| Time for full stroke | 2s-60s |
| Full stroke | 1000 steps |
| Resolution | 0.03mm(1 step) |
Confirm the required operating range, fluid path and compatible configuration for this industrial and OEM syringe pump with ProfTek before final selection.
Manufactured by Longer Pump. ProfTek supplies and supports Longer Pump products across Australia and New Zealand.
