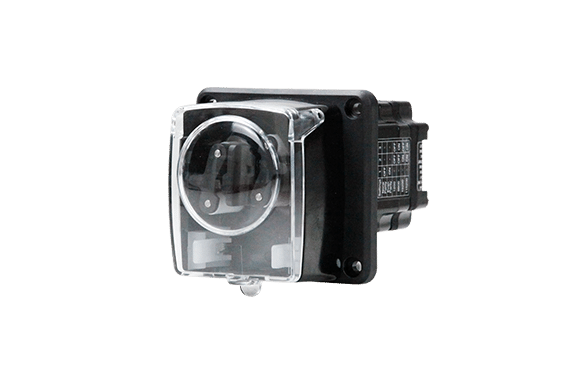

T100&TH15 is a OEM peristaltic pump for integration into instruments and automated liquid-handling equipment. Review its operating range and compatibility for your process.
| Parameter | Value |
|---|---|
| Motor type | Stepper motor |
| Control circuit board | No |
| Max. flow rate (Single Channel) | 167 mL/min |
| Pumphead model | TH15 |
| Pump speed | 0-100 rpm |
| Control mode | The pump speed will be proportional to the external speed signal: 4-20mA |
| Control feature | No |
| Dimensions (L x W x H) | 85mmx85mmx134mm |
| Installation method | Panel Installation |
| Power supply | DC24V/10W |
| Operating temperature | 0℃-40℃ |
| Relative humidity | ＜80% |
Confirm the required operating range, fluid path and compatible configuration for this OEM peristaltic pump with ProfTek before final selection.
Contact ProfTek for current technical documentation.
Manufactured by Longer Pump. ProfTek supplies and supports Longer Pump products across Australia and New Zealand.
