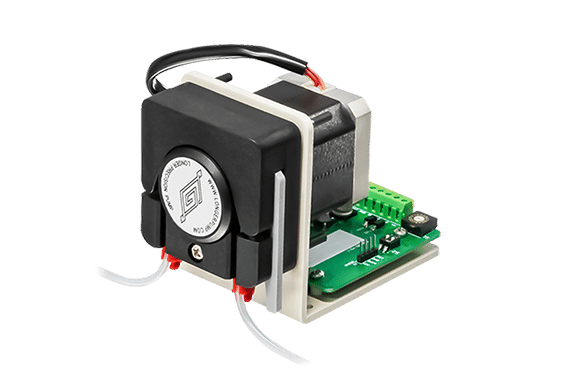

T100&WX10 is a OEM peristaltic pump for integration into instruments and automated liquid-handling equipment. Review its operating range and compatibility for your process.
| Parameter | Value |
|---|---|
| Motor type | Stepmotor |
| Control circuit board | Yes |
| Max. flow rate（Single Channel） | ≤170ml/min |
| Pumphead model | WX10-14 |
| Pump speed | ≤100rpm |
| Control mode | BCD dial switch, 4-20mA, 0-5V, 0-10V, 0-10kHz, RS485 |
| Control feature | Start/stop control, Direction control, Speed control |
| Dimensions (L x W x H) | 106×60×81(mm) |
| Installation method | Soleplate or panel installation |
| Power supply | DC11.4V-25.2V/≤12W |
| Operating temperature | 0℃-40℃ |
| Relative humidity | ＜80% |
Confirm the required operating range, fluid path and compatible configuration for this OEM peristaltic pump with ProfTek before final selection.
Manufactured by Longer Pump. ProfTek supplies and supports Longer Pump products across Australia and New Zealand.
