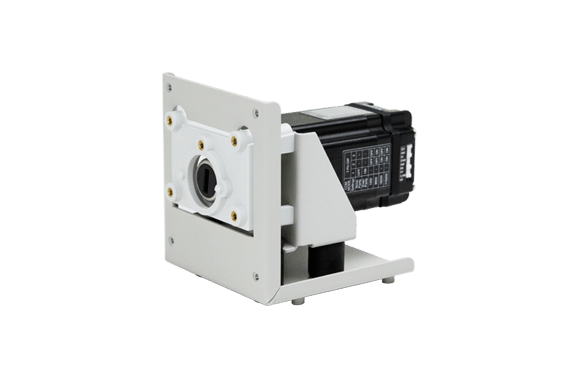

T300-SC02 is a OEM peristaltic pump for integration into instruments and automated liquid-handling equipment. Review its operating range and compatibility for your process.
| Parameter | Value |
|---|---|
| Motor type | Stepper motor |
| Control circuit board | Yes |
| Max. flow rate(Single Channel) | ≤1500mL/min |
| Pumphead model | No (to be ordered separately) |
| Pump speed | ≤300rpm |
| Control mode | RS485, Modbus RTU or Longer OEM protocol |
| Control feature | Pump speed, start/stop, direction, prime status, via RS485 |
| Dimensions(L x W x H) | 143x102x118(mm) |
| Installation method | Panel mount or soleplate mount |
| Power supply | DC24V/45W |
| Operating temperature | 0℃-40℃ |
| Relative humidity | ＜80% |
Confirm the required operating range, fluid path and compatible configuration for this OEM peristaltic pump with ProfTek before final selection.
Manufactured by Longer Pump. ProfTek supplies and supports Longer Pump products across Australia and New Zealand.
