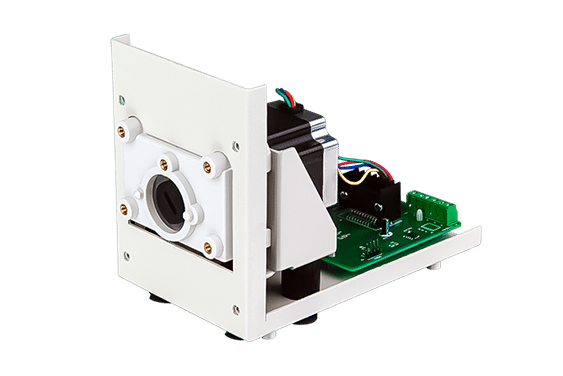

T600 is a OEM peristaltic pump for integration into instruments and automated liquid-handling equipment. Review its operating range and compatibility for your process.
| Parameter | Value |
|---|---|
| Motor type | Stepmotor |
| Control circuit board | Yes |
| Max. flow rate（Single Channel） | ≤2400ml/min |
| Pumphead model | No(purchased separately) |
| Pump speed | 0-600 rpm |
| Control mode | BCD dial switch, 4-20mA, 0-5V, 0-10V, 0-10kHz, RS485 |
| Control feature | Start/stop control, Direction control, Speed control |
| Dimensions (L x W x H) | 185 x 125 x 136 (mm) |
| Installation method | Panel installation as standard. Soleplate installation can be customized. |
| Power supply | DC24V/80W |
| Operating temperature | 0℃-40℃ |
| Relative humidity | ＜80% |
Confirm the required operating range, fluid path and compatible configuration for this OEM peristaltic pump with ProfTek before final selection.
Manufactured by Longer Pump. ProfTek supplies and supports Longer Pump products across Australia and New Zealand.
