Name: Longer Pump WT3000-1FB
Brand: Proftek

Longer Pump WT3000-1FB

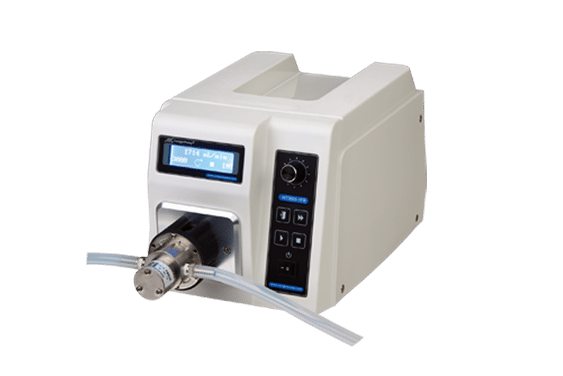

WT3000-1FB is a micro gear pump for controlled fluid-handling applications. Review its operating range and compatibility for your process.

Key applications

Technical benefits

WT3000-1FB micro gear pump has two kinds of work mode: flow mode and dispensing mode.
It can provide 85.7－2571.4mL/min flow rate with flow mode and dispense 0.1ml-999L volume with dispensing mode.
It adopts DC brushless motor and 316 stainless steel pump head. Equipped with compact precision pump head, it has features of low noise, no pulsation, high efficiency and maintenance free.
Due to the mechanical structure, gear pump just works with fixed direction.

WT3000-1FB specifications
Parameter	Value
Flow Range	85.7-2571.4 mL/min
Compatible Pump Head	MG204; MG209; MG213
Gear Material	PEEK; PTFE
Housing Material	316L stainless steel
Pressure Resistance	≤0.8 MPa (depending on pump head); ≤1.4 MPa (depending on pump head)
Rotation Speed Range	300 rpm-3000 rpm
Resolution	1 rpm
Display	LCD screen display
Operating Mode	continuous transmission; multiple distribution
Control Method	button and rotary knob control; external signal control; communication control
External Control Function	start/stop; speed
Communication Control	RS485

Confirm the required operating range, fluid path and compatible configuration for this micro gear pump with ProfTek before final selection.

Manufactured by Longer Pump. ProfTek supplies and supports Longer Pump products across Australia and New Zealand.
