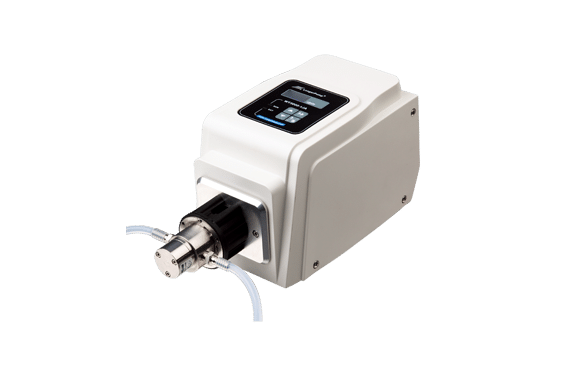

WT3000-1JA is a micro gear pump for controlled fluid-handling applications. Review its operating range and compatibility for your process.
| Parameter | Value |
|---|---|
| Flow Range | 85.7-2571.4 mL/min |
| Compatible Pump Head | MG204; MG209; MG213 |
| Gear Material | PEEK; PTFE |
| Housing Material | 316L stainless steel |
| Pressure Resistance | ≤0.3 MPa (depending on pump head); ≤0.8 MPa (depending on pump head) |
| Rotation Speed Range | 300 rpm-3000 rpm |
| Resolution | 1 rpm |
| Display | 4-digit LED showing rotational speed |
| Operating Mode | continuous transmission |
| Control Method | button control; external signal control; communication control |
| External Control Function | start/stop; speed |
| Communication Control | RS485 |
Confirm the required operating range, fluid path and compatible configuration for this micro gear pump with ProfTek before final selection.
Manufactured by Longer Pump. ProfTek supplies and supports Longer Pump products across Australia and New Zealand.
