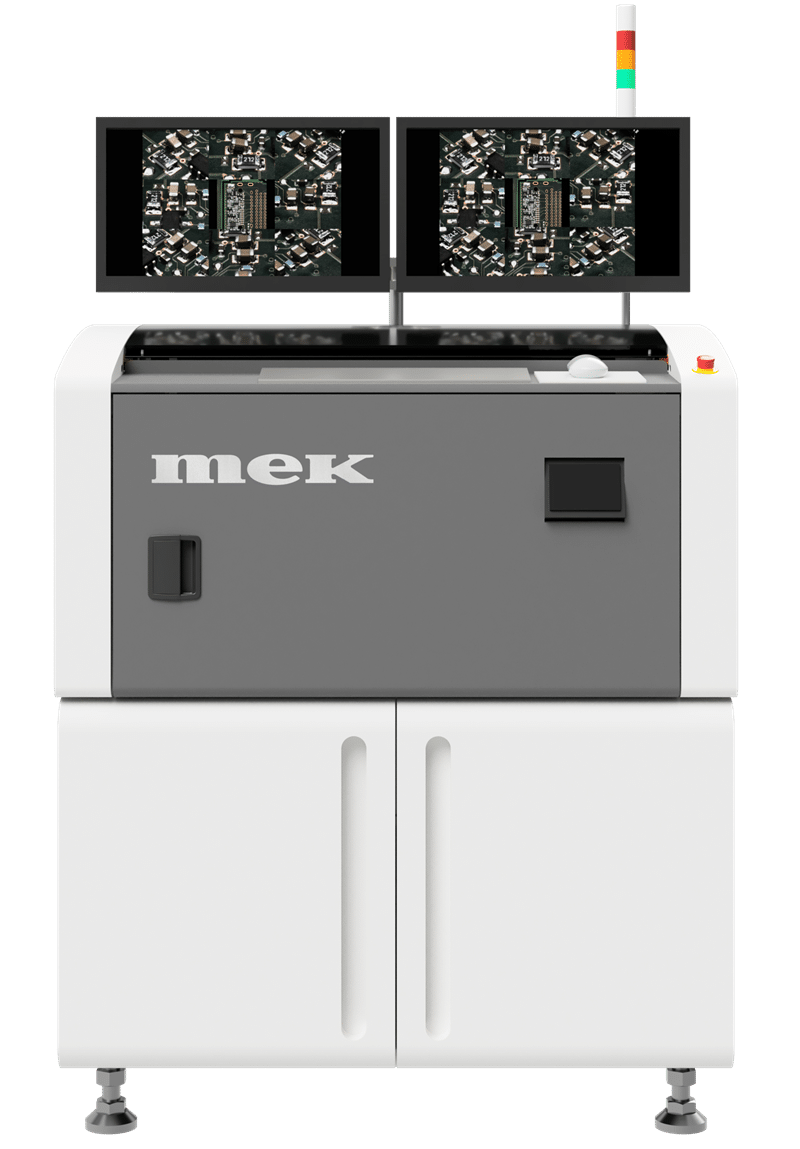

The bottom-side PCB AOI inspection system MEK PowerSpector BTL inspects solder joints and components beneath PCB assemblies without interrupting production flow. ProfTek supplies the system with application advice, installation planning and technical support.
The MEK PowerSpector BTL is a specialised Automated Optical Inspection (AOI) system engineered to inspect the underside of printed circuit boards following reflow, wave, or selective soldering. As electronics assemblies increasingly use bottom-side SMT components alongside through-hole parts, reliable inspection of the underside of the PCB has become essential – and the PowerSpector BTL is built precisely for this task.
The PowerSpector BTL addresses a gap in most AOI line configurations: the inspection of solder joints on the underside of the board. This is particularly critical for wave-soldered through-hole assemblies and for boards with double-sided SMT components, where bottom-side inspection is the last quality gate before the product reaches the customer.
The system reliably detects wave soldering defects including solder bridges, icicles, insufficient fill in through-hole joints, and skipped joints. For bottom-side SMT components, the system identifies missing parts, polarity errors, and gross positioning defects that can occur during reflow of double-sided boards.
As the authorised MEK distributor for Australia and New Zealand, Proftek offers local application support and technical service for the PowerSpector BTL. Speak with our team to assess whether a dedicated bottom-side AOI system is the right investment for your production line.
Typical applications span electronics manufacturing, semiconductor processing, precision industrial production, scientific research and development, and specialised manufacturing processes. The equipment is configurable and programmable to match specific process requirements, scaling from small-batch laboratory operations to high-volume continuous production environments.
Key features include robust mechanical and electrical construction for extended service life, intuitive operator interface, programmable process parameters with recipe storage, comprehensive safety interlocks and alarm functions, and standard data output interfaces for process monitoring, statistical reporting, and traceability. Service access is designed into the equipment to minimise planned maintenance downtime and enable rapid fault diagnosis.
ProfTek is the authorised Australian supplier and service partner for this equipment, providing application consultation, equipment sales, installation and commissioning, operator training, preventive maintenance programmes, and spare parts supply. Our technical team carries in-depth knowledge of both the equipment and the processes it supports, enabling fast and effective technical assistance when required.
Contact ProfTek to discuss your application requirements and receive a recommendation on the most appropriate equipment configuration and available options. We serve customers across all Australian states and territories with responsive support, strong application expertise, and reliable spare parts availability.
The MEK PowerSpector BTL – Bottom-Side PCB AOI Inspection System is available through ProfTek, Australia’s authorised distributor for precision industrial and electronics manufacturing equipment. Request a quote or technical consultation for the MEK PowerSpector BTL – Bottom-Side PCB AOI Inspection System by contacting our specialist team.
Browse ProfTek’s complete equipment catalogue to explore our full range of inspection, process, and manufacturing solutions available across Australia.
For industry standards, technical resources, and professional development in advanced manufacturing, visit the Australian Manufacturing Technology Institute (AMTIL), the peak industry body supporting manufacturing excellence in Australia.
Contact ProfTek to discuss the MEK PowerSpector BTL for your application, request technical documentation, or arrange a quotation. Our engineers support installation, commissioning and training across Australia and New Zealand.
