The MP Cooling Cabinet T05 II is available from Prof-Tek, Australia’s specialist supplier of precision industrial and electronics manufacturing equipment. This tall double-height refrigerated storage cabinet provides large-capacity precision temperature-controlled storage for solder paste, adhesives, epoxies and other temperature-sensitive production materials in SMT and electronics manufacturing facilities.
The MP Cooling Cabinet T05 II delivers the highest single-bay refrigerated storage capacity in the T05 range within a compact floor footprint. Its full stainless steel body, powerful integrated cooling aggregate, Rotronic sensor (±0.1 °C accuracy), and IDEC graphical touch display provide complete process control for temperature-sensitive material management. The tall-format design accommodates a large number of solder paste jars, adhesive cartridges, syringes and other production materials in an organised, accessible layout.

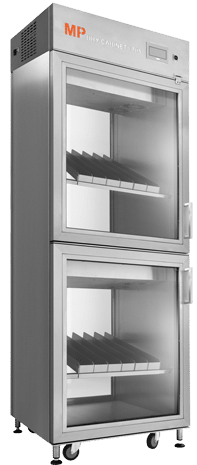

External dimensions: 700 × 2040 × 710 mm. The MP Cooling Cabinet T05 II full-height format maximises refrigerated storage capacity within a single-bay floor footprint, making it ideal for high-volume SMT operations and larger production environments where significant solder paste or adhesive inventories must be managed at precise temperatures.
The MP Cooling Cabinet T05 II uses a powerful integrated cooling aggregate to maintain temperatures from ambient down to below 0 °C, programmable in 1 °C steps. Premium insulation ensures thermal stability throughout the tall chamber with minimal temperature stratification. The Rotronic precision sensor (±0.1 °C) continuously monitors internal temperature, with configurable acoustic alarms for temperature deviations and door-open events.
The MP Cooling Cabinet T05 II supports single-door and optional double-sided access for front/rear FIFO material management. When combined with optional RFID access control and customised shelves for solder paste jars or syringes, the T05 II enables a fully controlled, first-in-first-out solder paste management workflow. The integrated datalogger records temperature and door-opening events for full production traceability.
Full graphical IDEC touch display, integrated datalogger, LAN network connection and USB connector are standard on the MP Cooling Cabinet T05 II. Optional DyCabinet software provides remote monitoring, alarm management and Industry 4.0 integration, enabling production managers to oversee refrigerated material storage from any connected point on the production network.
Standard: full stainless steel body, double or single door access, programmable cooling (0 °C to ambient), Rotronic ±0.1 °C sensor, IDEC touch display, integrated datalogger, LAN, USB, acoustic alarm, height-adjustable legs, ESD wheels, dithermal glass. Optional: RFID access, password-protected electromagnetic lock, mechanical lock, slide-out shelves (100 kg), customised shelves (jars/syringes), MPDRY5 drying unit, nitrogen atmosphere, DyCabinet software, LED illumination, status light, FIFO system.
The MP Cooling Cabinet T05 II is used for high-volume solder paste refrigerated storage, adhesive and epoxy storage, and any SMT or electronics manufacturing application requiring large-capacity precision-temperature-controlled material management with optional FIFO access control and Industry 4.0 integration.
Contact the Prof-Tek specialist team for comprehensive MP Cooling Cabinet T05 II technical documentation, pricing, lead times and availability across Australia. Prof-Tek is the authorised Australian distributor for MP Elektronik cooling cabinet systems.nn
n
Prof-Tek Australia supplies the complete range of MP Elektronik dry cabinets for Australian electronics manufacturers. For pricing and technical specifications, contact our team or visit the MP Elektronik website.
