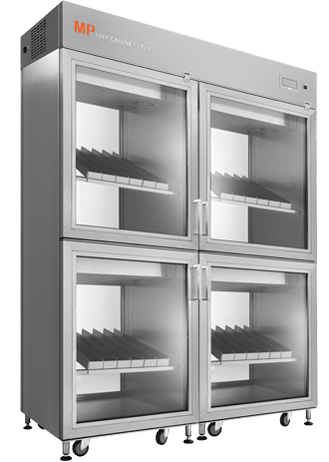

The MP Cooling Cabinet T05 IV is available from Prof-Tek, Australia’s specialist supplier of precision industrial and electronics manufacturing equipment. This double-wide large-capacity refrigerated storage cabinet provides the highest cooling storage capacity in the T05 range, designed for high-volume SMT operations requiring large inventories of solder paste, adhesives and temperature-sensitive production materials to be stored at precise temperatures.
The MP Cooling Cabinet T05 IV combines the full-height format of the T05 II with a doubled-width chamber, delivering maximum refrigerated storage capacity for demanding production environments. The full stainless steel body, integrated cooling aggregate, Rotronic precision sensor (±0.1 °C) and IDEC graphical touch display provide complete temperature management across the entire wide-format chamber.
External dimensions: 1410 × 2040 × 710 mm. The double-wide, full-height format of the MP Cooling Cabinet T05 IV provides the largest refrigerated storage volume in the standard T05 range, suitable for high-volume production environments managing large solder paste, adhesive and temperature-sensitive material inventories.
The MP Cooling Cabinet T05 IV uses an integrated high-capacity cooling aggregate to maintain programmable temperatures from ambient down to below 0 °C in 1 °C steps. Premium insulation throughout the wide-format chamber ensures temperature uniformity across all shelf levels. Rotronic sensor accuracy of ±0.1 °C provides precise, reliable temperature monitoring with configurable alarms for temperature deviations and door-open events.
The MP Cooling Cabinet T05 IV supports single and optional double-sided front/rear access for FIFO material management workflows. Combined with optional RFID access control with electromagnetic door locks, the T05 IV delivers a fully controlled solder paste management system where loading and retrieval are independently controlled, logged and traceable. Customised shelves for solder paste jars or syringes optimise storage organisation within the wide-format chamber.
Full graphical IDEC touch display, integrated datalogger, LAN network connection and USB connector are standard. Optional DyCabinet software provides remote monitoring, alarm management and integration with MES, ERP and production monitoring systems, enabling full Industry 4.0 connectivity for refrigerated material management across the production floor.
Standard: full stainless steel body, single or double-sided access, programmable cooling to below 0 °C (1 °C steps), Rotronic ±0.1 °C sensor, IDEC graphical touch display, integrated datalogger, LAN, USB, acoustic alarm, height-adjustable legs, ESD wheels, dithermal glass. Optional: RFID access, password-protected electromagnetic lock, mechanical lock, slide-out shelves (100 kg), standard shelves (100 kg), customised shelves (jars/syringes), MPDRY5 drying unit, nitrogen atmosphere, DyCabinet software, LED illumination, status light, FIFO system.
The MP Cooling Cabinet T05 IV is the solution of choice for high-volume SMT manufacturing operations, PCB assembly facilities and contract electronics manufacturers managing large solder paste inventories. Additional applications include adhesive, underfill and epoxy refrigerated storage, pharmaceutical material management and any production environment requiring large-capacity precision refrigerated storage with FIFO material flow control.
Contact the Prof-Tek specialist team for comprehensive MP Cooling Cabinet T05 IV technical documentation, pricing, lead times and availability across Australia. Prof-Tek is the authorised Australian distributor for MP Elektronik cooling cabinet systems.nn
n
Prof-Tek Australia supplies the complete range of MP Elektronik dry cabinets for Australian electronics manufacturers. For pricing and technical specifications, contact our team or visit the MP Elektronik website.
