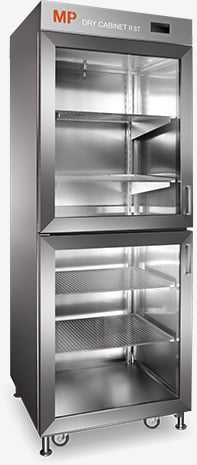

The MP Dry Cabinet II ST is available from Prof-Tek, Australia’s specialist supplier of precision industrial and electronics manufacturing equipment. This 550-litre tall-format stainless steel dry cabinet delivers high-capacity, precision humidity-controlled storage for moisture-sensitive devices, PCB assemblies and precision electronic components on SMT and electronics manufacturing lines.
The MP Dry Cabinet II ST is the mid-range stainless steel dry cabinet in the MP Elektronik Standard ST series, offering nearly double the capacity of the I ST in the same floor footprint. The full-height format with five adjustable shelves and a single MPDRY5 drying unit makes the MP Dry Cabinet II ST the most space-efficient choice for operations requiring substantial MSD storage capacity without doubling cabinet width.
With adjustable heating up to 60 °C, 30 mm insulation and a dithermal metal-coated safety glass door, the MP Dry Cabinet II ST maintains stable humidity and temperature throughout the 550-litre chamber. The integrated IDEC graphical touch display, datalogger and LAN connection ensure full operational transparency and traceability.
External dimensions: 700 × 1920 × 690 mm. Internal dimensions: 640 × 1650 × 520 mm. Internal volume: 550 litres. The tall-format MP Dry Cabinet II ST maximises storage capacity within a compact single-bay floor footprint, making it ideal for space-constrained SMT and electronics assembly environments.
The MP Dry Cabinet II ST is equipped with one MPDRY5 desiccant drying unit, which operates continuously and silently to maintain the target relative humidity set via the touch display. Heating up to 60 °C is integrated as standard, enabling baking out of moisture-absorbed components without the need for a separate oven. An optional second MPDRY5 unit accelerates humidity recovery after door openings in high-traffic production environments.
The MP Dry Cabinet II ST features a full graphical IDEC touch display, integrated datalogger, LAN network connection and USB connector as standard. Configurable acoustic alarms cover open-door events, time-defined humidity drift and drying unit faults. Optional DyCabinet and DyTrace software provide full Industry 4.0 data integration, remote monitoring and MES connectivity.
The MP Dry Cabinet II ST is fully ESD-safe with an integrated ESD grounding point and dithermal metal-coated safety glass. Optional RFID access management with electromagnetic door lock provides authorised-operator-only access with full event logging. Password-protected electromagnetic door lock with timer, and mechanical door lock options are also available to suit different security and workflow requirements.
ESD-safe design, full stainless steel body, 30 mm insulation, heating up to 60 °C, one MPDRY5 drying unit, five stainless steel shelves adjustable in 20 mm steps (maximum 50 kg per shelf), Rotronic sensor (±0.8% RH, 0.1 K), IDEC graphical touch display, integrated datalogger, LAN connection, USB connector, configurable acoustic alarm, height-adjustable legs and ESD wheels.
RFID access with electromagnetic door lock, password-protected electromagnetic door lock with timer, mechanical door lock, slide-out shelves (35 kg or 100 kg capacity), additional MPDRY5 drying unit, Rotronic HPS precision sensor (±0.5% RH), 50 mm insulation, Peltier cooling unit (minimum 10 °C), electric exhaust flap, internal nitrogen atmosphere, interior LED illumination, status light, DyCabinet and DyTrace software.
The MP Dry Cabinet II ST is widely used for J-STD-033 compliant MSD storage, SMT reel and tray storage, bare PCB storage, solder paste and adhesive storage, precision measuring instrument storage, and any application requiring a large-capacity, reliable humidity-controlled environment in an electronics or industrial manufacturing setting.
Contact the Prof-Tek specialist team for comprehensive MP Dry Cabinet II ST technical documentation, pricing, lead times and availability across Australia. Prof-Tek is the authorised Australian distributor for MP Elektronik dry cabinet systems.nn
n
Prof-Tek Australia supplies the complete range of MP Elektronik dry cabinets for Australian electronics manufacturers. For pricing and technical specifications, contact our team or visit the MP Elektronik website.
