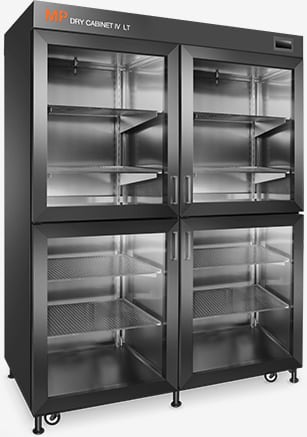

The MP Dry Cabinet IV LT is available from Prof-Tek, Australia’s specialist supplier of precision industrial and electronics manufacturing equipment. This 1385-litre double-wide ESD-safe dry cabinet is the highest-capacity model in the MP Elektronik Standard LT range, providing large-volume humidity-controlled storage with full electrostatic discharge protection for high-volume SMT, semiconductor and advanced electronics manufacturing operations.
The MP Dry Cabinet IV LT combines two MPDRY5 desiccant drying units and ten adjustable ESD shelves in a wide-format ESD RAL 7016 body, delivering the most storage capacity of any standard LT cabinet. The dual-drying-unit configuration ensures uniform, stable humidity throughout the entire 1385-litre chamber, even under high loading and frequent access conditions. The MP Dry Cabinet IV LT is the preferred solution for operations managing large inventories of moisture-sensitive devices that require both humidity control and ESD protection.
External dimensions: 1393 × 1920 × 690 mm. Internal dimensions: 1390 × 1660 × 600 mm. Internal volume: 1385 litres. At nearly 1.4 cubic metres of ESD-safe, humidity-controlled internal volume, the MP Dry Cabinet IV LT is the definitive large-capacity dry storage solution for high-volume electronics manufacturing environments.
Two MPDRY5 desiccant drying units operate in tandem to maintain consistent low relative humidity throughout the wide-format chamber of the MP Dry Cabinet IV LT. This dual configuration provides both performance redundancy and rapid humidity recovery, ensuring that the cabinet returns to the target humidity level quickly after door openings in high-throughput production environments. Optional additional drying units can be specified for extreme humidity-sensitivity applications.
The MP Dry Cabinet IV LT features a full ESD RAL 7016 body and ten adjustable ESD shelves, with an integrated ESD grounding point for connection to the facility earth network. This ensures full IEC 61340-5-1 and ANSI/ESD S20.20 compliant ESD protection throughout the storage environment, making the MP Dry Cabinet IV LT suitable for storing the most ESD-sensitive semiconductor components alongside bulk MSD inventories.
The MP Dry Cabinet IV LT includes a full graphical IDEC touch display, integrated datalogger, LAN network connection and USB connector as standard. Configurable acoustic alarms cover open-door events, humidity drift and drying unit faults across both units. Optional DyCabinet and DyTrace software connect the MP Dry Cabinet IV LT to MES and ERP systems, delivering full Industry 4.0 production data integration and remote monitoring capability.
Full ESD RAL 7016 body, ESD-safe design, two MPDRY5 drying units, ten ESD shelves adjustable in 20 mm steps (maximum 50 kg per shelf), Rotronic sensor (±0.8% RH, 0.1 K), IDEC graphical touch display, integrated datalogger, LAN connection, USB connector, configurable acoustic alarm, height-adjustable legs and ESD wheels.
The MP Dry Cabinet IV LT is the preferred large-capacity ESD-safe dry storage solution for high-volume SMT component warehouses, semiconductor packaging lines, incoming goods inspection stations, PCB assembly kitting areas and production floor MSD management systems. The 1385-litre capacity of the MP Dry Cabinet IV LT supports large inventories across multiple MSD levels while maintaining full ESD protection and precise humidity control.
Contact the Prof-Tek specialist team for comprehensive MP Dry Cabinet IV LT technical documentation, pricing, lead times and availability across Australia. Prof-Tek is the authorised Australian distributor for MP Elektronik dry cabinet systems.nn
n
Prof-Tek Australia supplies the complete range of MP Elektronik dry cabinets for Australian electronics manufacturers. For pricing and technical specifications, contact our team or visit the MP Elektronik website.
