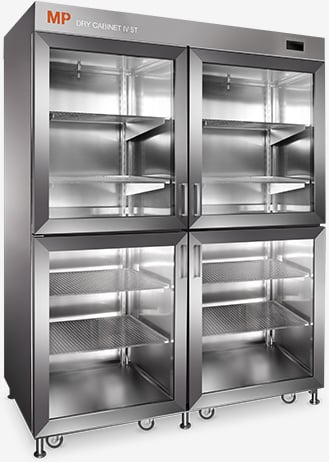

The MP Dry Cabinet IV ST is available from Prof-Tek, Australia’s specialist supplier of precision industrial and electronics manufacturing equipment. This 1010-litre double-wide stainless steel dry cabinet is the highest-capacity model in the Standard ST range, designed for operations that require large-volume, precisely controlled humidity storage for moisture-sensitive devices, PCBs, solder materials and precision electronic components.
The MP Dry Cabinet IV ST doubles the width of the II ST to deliver over one cubic metre of stainless steel storage with two independent MPDRY5 drying units and dual heating elements, ensuring uniform humidity control throughout the entire 1010-litre chamber. Ten adjustable stainless steel shelves accommodate the largest component reels, PCB panels, trays and production materials. The dual-unit architecture means the MP Dry Cabinet IV ST continues operating if one drying unit requires servicing, ensuring uninterrupted production uptime.
External dimensions: 1410 × 1920 × 680 mm. Internal dimensions: 1280 × 1520 × 520 mm. Internal volume: 1010 litres. The MP Dry Cabinet IV ST provides the highest stainless steel dry storage capacity in the MP Elektronik standard range, suited to high-volume SMT operations, PCB manufacturing, semiconductor packaging and industrial quality control laboratories.
The MP Dry Cabinet IV ST is fitted with two MPDRY5 desiccant drying units and two independent heating elements (up to 60 °C each). This dual-system architecture ensures consistent humidity and temperature uniformity throughout the wide-format chamber, even when all ten shelves are fully loaded. The dual MPDRY5 units provide redundancy, allowing continued operation if one unit requires maintenance. Additional drying units can be added as options if even faster humidity recovery is required.
The MP Dry Cabinet IV ST features a full graphical IDEC touch display, integrated datalogger, LAN network connection and USB connector as standard. Configurable acoustic alarms cover open-door events, humidity drift and drying unit faults. Optional DyCabinet and DyTrace software connect the MP Dry Cabinet IV ST to MES, ERP and production monitoring systems, enabling full Industry 4.0 data exchange, automated alarms and remote monitoring from anywhere on the production network.
The MP Dry Cabinet IV ST is ESD-safe throughout, with an integrated ESD grounding point and dithermal metal-coated safety glass doors. Optional RFID access management with electromagnetic door locks provides controlled access across both door panels, with all access events logged for traceability. Password-protected electromagnetic door locks with timer and mechanical door lock options are available to suit various security and production workflow needs.
ESD-safe design, full stainless steel body, 30 mm insulation, dual heating up to 60 °C, two MPDRY5 drying units, ten stainless steel shelves adjustable in 20 mm steps (maximum 50 kg per shelf), Rotronic sensor (±0.8% RH, 0.1 K), IDEC graphical touch display, integrated datalogger, LAN connection, USB connector, configurable acoustic alarm, height-adjustable legs and ESD wheels.
The MP Dry Cabinet IV ST is the preferred choice for high-volume SMT operations, component kitting areas, incoming goods inspection, large-format PCB panel storage, semiconductor packaging lines and quality assurance departments requiring large-capacity J-STD-033 compliant MSD storage. The MP Dry Cabinet IV ST is equally suited to R&D and production environments where multiple material types need organised, traceable humidity-controlled storage at scale.
Contact the Prof-Tek specialist team for comprehensive MP Dry Cabinet IV ST technical documentation, pricing, lead times and availability across Australia. Prof-Tek is the authorised Australian distributor for MP Elektronik dry cabinet systems.nn
n
Prof-Tek Australia supplies the complete range of MP Elektronik dry cabinets for Australian electronics manufacturers. For pricing and technical specifications, contact our team or visit the MP Elektronik website.
