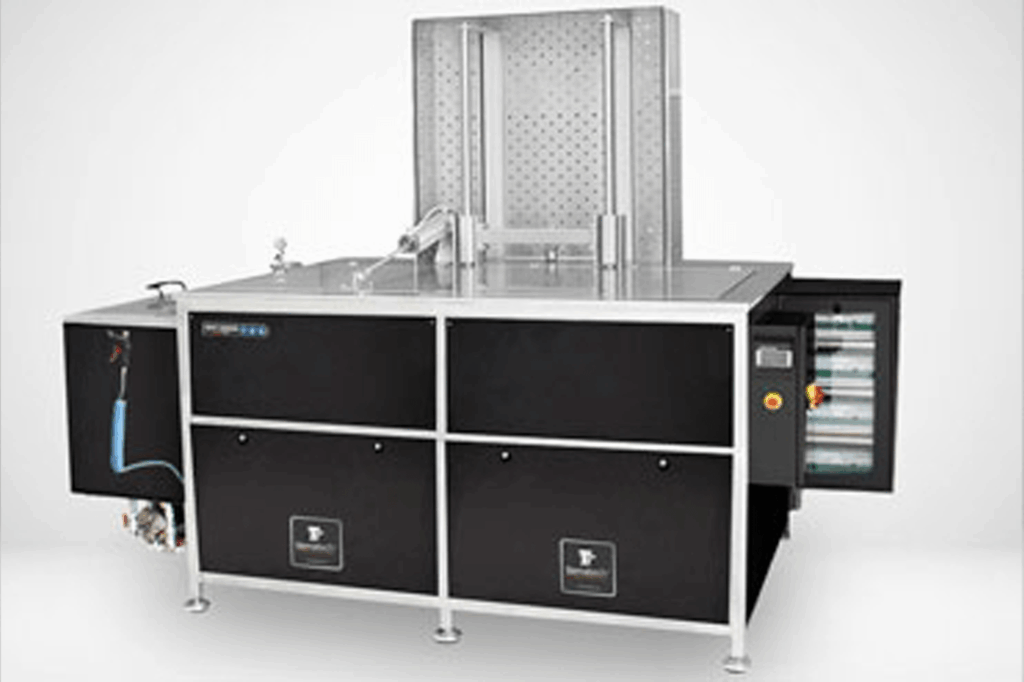

Ultrasonic Cleaner MOT-3000N

The Ultrasonic Cleaner MOT-3000N is available from Prof-Tek, Australia’s specialist supplier of precision industrial and electronics manufacturing equipment.

Technical Data

  • Capacity: 3000 litres
  • Internal dimensions: 2050 x 1200 x 1205 mm.
  • Useful basket measurements: 1930 x 1080 x 880 mm
  • External measurements: 3610 x 1820 x 1465 mm
  • Weight: 1850 kg.
  • Pneumatic lifting platform: up to 1500 kg.

Electrical Specification

  • Power Supply: 400V
  • Heating element: 2 x 12000W

Ultrasonic Feature

  • Ultrasonic power: 16000Wp (32000W p-p)
  • Ultrasonic generators with an output power of 16000Wp (32000W p-p)
  • 8 submersibles emitters with a power of 2000Wp (4000W p-p) made of 2.5 mm thick stainless steel AISI 316 steel, The emitter contains 34 PZT (lead zirconate titanate) piezo-electric transducers with aluminium alloy body
  • Working frequency: 40 kHz sweep system ± 2%

Control Panel Feature

  • 4.3” touch screen. Functional and intuitive access to
    ultrasound time setting, temperature and peripheric
    or optional systems. Programmable weekly calendar
  • 6 outputs and 8 inputs temperature module PLC

Finish & Accessories

  • Tank made of 2 mm thick stainless steel AISI 304
  • External panel in 1 mm thick fingerprint resistant steel
  • 20 mm thick thermo-acoustic insulation
  • Reinforced pneumatic platform for loading and unloading up to 1500 kg
  • 1½” drain ball valve
  • Height-adjustable silentblock legs
  • Automatic insulated tank cover in stainless steel operated by a pneumatic cylinder
  • Air blow gun for drying the parts
  • Integrated waterflow system. Sweeps the waste floating on the surface, keeping the cleaning equipment in
    perfect condition
  • (Optional): Filtration system (Stailess-Steel filter with polypropylene/polyester bag) for waste and mud

Product Overview

This equipment is engineered to meet the performance, reliability, and precision demands of modern industrial manufacturing and research environments. Built to operate reliably in continuous production conditions, it delivers consistent, repeatable process results across a wide range of applications and operating requirements.

Key Applications

Typical applications span electronics manufacturing, semiconductor processing, precision industrial production, scientific research and development, and specialised manufacturing processes. The equipment is configurable and programmable to match specific process requirements, scaling from small-batch laboratory operations to high-volume continuous production environments.

Features and Capabilities

Key features include robust mechanical and electrical construction for extended service life, intuitive operator interface, programmable process parameters with recipe storage, comprehensive safety interlocks and alarm functions, and standard data output interfaces for process monitoring, statistical reporting, and traceability. Service access is designed into the equipment to minimise planned maintenance downtime and enable rapid fault diagnosis.
