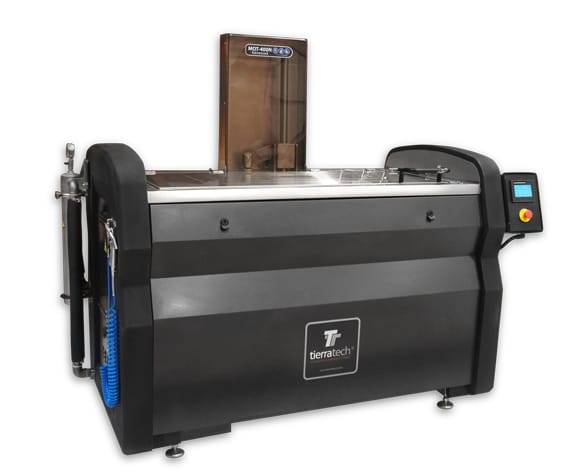

Ultrasonic Cleaner MOT-400N ADVANCED

The Ultrasonic Cleaner MOT-400N ADVANCED is available from Prof-Tek, Australia’s specialist supplier of precision industrial and electronics manufacturing equipment.

Specification

  • Capacity: 395 litres
  • WFS Capacity: 395 litres Internal dimensions: 1100x615x680 mm
  • Useful dimensions: 1060x525x440 mm
  • External dimensions: 1930x1085x1050 mm
  • Pneumatic lifting platform: up to 300 Kg

Electrical Specification

  • Power Supply: 240V / 400V
  • Heating element: 7500W

Ultrasonic Specification

  • Ultrasonic power: 3400Wp (6800Wp-p).
  • 1 ultrasonic generator with an output power of 3400Wp (6800Wp-p).
  • 2 submersible emitters with a power of 1700Wp (3400Wp-p) made of 2.5 mm thick stainless steel AISI 316. The emitters contains 34 PZT (lead zirconate titanate) piezoelectric transducers with aluminium alloy body.
  • Working frequency: 40 kHz sweep system ± 2%

Control Panel Specification

  • Functional and intuitive 4.3″ TFT LCD capacitive touch screen. With access to selection of ultrasonic time, temperature and peripheral or optional systems, also programmable with weekly calendar.
  • PLC with temperature module with 6 outputs and 8 inputs.

Finish & Accessories

  • Tank made of 2 mm thick stainless steel INOX AISI 304.
  • External panel of 1mm thick fingerprint-resistant steel (black colour).
  • Black polyethylene side panel.
  • 20 mm thick thermo-acoustic insulation.
  • Reinforced pneumatic platform for loading and unloading up to 200 kg.
  • AISI 304 stainless steel cover with thermal-acoustic insulation and opening/closing system with pneumatic cylinder.
  • WFS (oil separator), independent tank for the collection of oils and particles on the surface of the main cleaning tank, with oil drainage tank and maintenance with a capacity of 75 litres.
  • OPTIONAL: TTF bag filter or FQ101 cartridge filter for the removal of sludge from the bottom of the tank, made of AISI 304 stainless steel, pressure gauge and the possibility of integrating bags from 5 to 200 microns or cartridges from 0.2 to 105 microns.

Product Overview

This equipment is engineered to meet the performance, reliability, and precision demands of modern industrial manufacturing and research environments. Built to operate reliably in continuous production conditions, it delivers consistent, repeatable process results across a wide range of applications and operating requirements.

Key Applications

Typical applications span electronics manufacturing, semiconductor processing, precision industrial production, scientific research and development, and specialised manufacturing processes. The equipment is configurable and programmable to match specific process requirements, scaling from small-batch laboratory operations to high-volume continuous production environments.

Features and Capabilities

Key features include robust mechanical and electrical construction for extended service life, intuitive operator interface, programmable process parameters with recipe storage, comprehensive safety interlocks and alarm functions, and standard data output interfaces for process monitoring, statistical reporting, and traceability. Service access is designed into the equipment to minimise planned maintenance downtime and enable rapid fault diagnosis.

Why Choose Prof-Tek

Prof-Tek is the authorised Australian supplier and service partner for this equipment, providing application consultation, equipment sales, installation and commissioning, operator training, preventive maintenance programmes, and spare parts supply. Our technical team carries in-depth knowledge of both the equipment and the processes it supports, enabling fast and effective technical assistance when required.

Get in Touch

Contact Prof-Tek to discuss your application requirements and receive a recommendation on the most appropriate equipment configuration and available options. We serve customers across all Australian states and territories with responsive support, strong application expertise, and reliable spare parts availability.

The Ultrasonic Cleaner MOT-400N ADVANCED is available through Prof-Tek, Australia’s authorised distributor for precision industrial and electronics manufacturing equipment. Request a quote or technical consultation for the Ultrasonic Cleaner MOT-400N ADVANCED by contacting our specialist team.

Browse Prof-Tek’s complete equipment catalogue to explore our full range of inspection, process, and manufacturing solutions available across Australia.

For industry standards, technical resources, and professional development in advanced manufacturing, visit the Australian Manufacturing Technology Institute (AMTIL), the peak industry body supporting manufacturing excellence in Australia.

The Ultrasonic Cleaner MOT-400N ADVANCED is engineered for precision and reliability in demanding production environments. Enquire today about Ultrasonic Cleaner MOT-400N ADVANCED specifications, lead times, and pricing for your facility. Our applications engineers provide full Ultrasonic Cleaner MOT-400N ADVANCED installation planning and operator training. To arrange a live demonstration of the Ultrasonic Cleaner MOT-400N ADVANCED, contact the Prof-Tek team directly. The Ultrasonic Cleaner MOT-400N ADVANCED is supported by Prof-Tek’s comprehensive Australian warranty and aftersales service program.

Ultrasonic Cleaner MOT-400N ADVANCED

Contact Prof-Tek today to obtain full technical documentation and a competitive quote for the Ultrasonic Cleaner MOT-400N ADVANCED.

Ultrasonic Cleaner MOT-400N ADVANCED – Technical Specifications & Pricing

Contact the Prof-Tek specialist team for comprehensive Ultrasonic Cleaner MOT-400N ADVANCED technical documentation, pricing, and availability across Australia.
