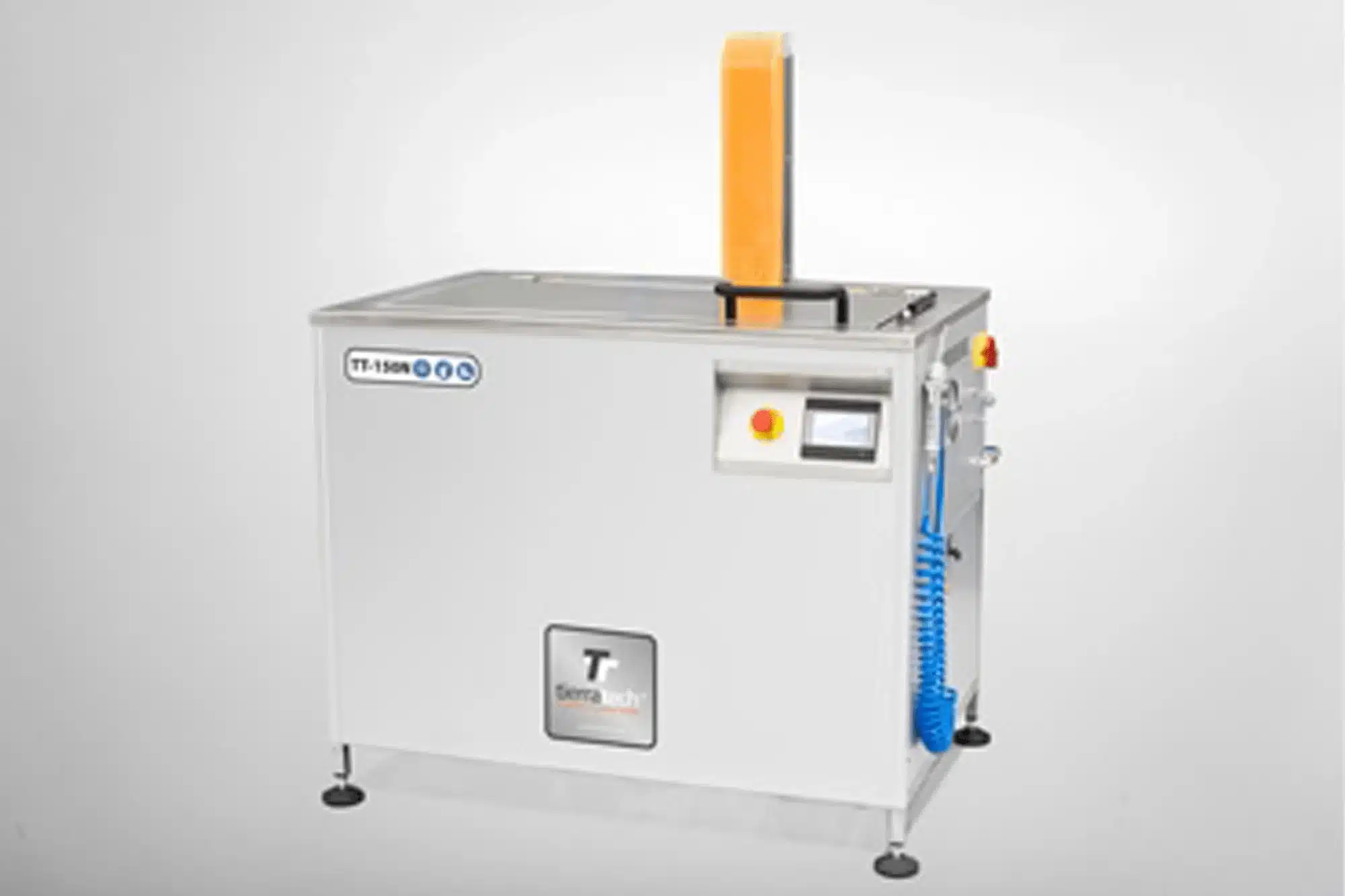

Ultrasonic Cleaner TT-150N

The Ultrasonic Cleaner TT-150N is available from Prof-Tek, Australia’s specialist supplier of precision industrial and electronics manufacturing equipment.

Specification

  • Capacity: 150 litres
  • Internal dimensions: 700 x 480 x 540 mm
  • Useful basket measurements:  670 x 415 x 345 mm
  • External measurements: 1355 x 825 x 945 mm
  • Weight: 175 kg

Electrical Specification

  • Power Supply: 230V / 400V
  • Heating element: 3750W

Ultrasonic Specification

  • Ultrasonic power: 1700Wp (3400Wp-p)
  • 1 ultrasonic generator with an output power of 1700Wp (3400Wp-p)
  • 1 submergible emitter with 1700Wp (3400Wp-p) of power built in INOX AISI 316 steel, 25,4 mm thick. The emitter contains 16 high-performance PZT (lead zirconate titanate) piezo-electric transducers with aluminium alloy body.
  • Working frequency: 40 kHz sweep system ± 2%

Control Panel Specification

  • Integrated control panel  with 7″ TFT screen.
  • Time and temperature control.
  • Movement button (up – down – shaking).
  • US button (connect – disconnect), direct ultrasonic alarms and selectors.
  • Heating button (on – off).
  • WFS/Filter button (optional) (on – off).
  • START-STOP button (connect – disconnect cycle).
  • ON-OFF button (on – off control).
  • Capacity to work with 22 programmable cycles, protected by password.
  • Temperature control through PT100, over temperature safety and breakage sensor.
  • Weekly programmer, for preheating and turning off the machine.
  • Level control.
  • IP65 protection.

Finish & Accessories

  • Tank built in stainless steel AISI 304 of 2 mm.
  • External panel in fingerprint-resistant steel, 1 mm thick.
  • Thermo-acustic isolator K-Flex Duct Net, 20 mm thick.
  • Reinforced pneumatic platform for loading and unloading up to 132 lb
  • 25,4 mm draining ball valve
  • Height adjustable legs
  • Insulated tank cover in Stainless-Steel with pneumatic shock absorber
  • Air blow-gun for drying parts
  • Integrated wateflow system. Removes the existing waste on the tank surface, keeping the cleaning equipment in perfect condition
  • (Optional): Filtration system (Stainless-Steel filter with polypropylene/polyester bag) for waste and mud

Product Overview

This equipment is engineered to meet the performance, reliability, and precision demands of modern industrial manufacturing and research environments. Built to operate reliably in continuous production conditions, it delivers consistent, repeatable process results across a wide range of applications and operating requirements.

Key Applications

Typical applications span electronics manufacturing, semiconductor processing, precision industrial production, scientific research and development, and specialised manufacturing processes. The equipment is configurable and programmable to match specific process requirements, scaling from small-batch laboratory operations to high-volume continuous production environments.

Features and Capabilities

Key features include robust mechanical and electrical construction for extended service life, intuitive operator interface, programmable process parameters with recipe storage, comprehensive safety interlocks and alarm functions, and standard data output interfaces for process monitoring, statistical reporting, and traceability. Service access is designed into the equipment to minimise planned maintenance downtime and enable rapid fault diagnosis.

Why Choose Prof-Tek

Prof-Tek is the authorised Australian supplier and service partner for this equipment, providing application consultation, equipment sales, installation and commissioning, operator training, preventive maintenance programmes, and spare parts supply. Our technical team carries in-depth knowledge of both the equipment and the processes it supports, enabling fast and effective technical assistance when required.

Get in Touch

Contact Prof-Tek to discuss your application requirements and receive a recommendation on the most appropriate equipment configuration and available options. We serve customers across all Australian states and territories with responsive support, strong application expertise, and reliable spare parts availability.

The Ultrasonic Cleaner TT-150N is available through Prof-Tek, Australia’s authorised distributor for precision industrial and electronics manufacturing equipment. Request a quote or technical consultation for the Ultrasonic Cleaner TT-150N by contacting our specialist team.

Browse Prof-Tek’s complete equipment catalogue to explore our full range of inspection, process, and manufacturing solutions available across Australia.

For industry standards, technical resources, and professional development in advanced manufacturing, visit the Australian Manufacturing Technology Institute (AMTIL), the peak industry body supporting manufacturing excellence in Australia.

The Ultrasonic Cleaner TT-150N is engineered for precision and reliability in demanding production environments. Enquire today about Ultrasonic Cleaner TT-150N specifications, lead times, and pricing for your facility. Our applications engineers provide full Ultrasonic Cleaner TT-150N installation planning and operator training. To arrange a live demonstration of the Ultrasonic Cleaner TT-150N, contact the Prof-Tek team directly. The Ultrasonic Cleaner TT-150N is supported by Prof-Tek’s comprehensive Australian warranty and aftersales service program.

Ultrasonic Cleaner TT-150N

Contact Prof-Tek today to obtain full technical documentation and a competitive quote for the Ultrasonic Cleaner TT-150N.

Ultrasonic Cleaner TT-150N – Technical Specifications & Pricing

Contact the Prof-Tek specialist team for comprehensive Ultrasonic Cleaner TT-150N technical documentation, pricing, and availability across Australia.
