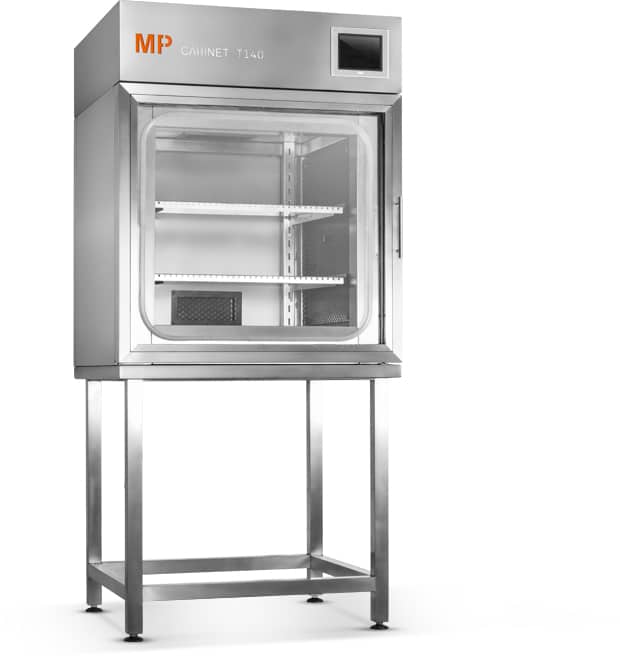

The MP Dry Cabinet T140 High Temperature is available from Prof-Tek, Australia’s specialist supplier of precision industrial and electronics manufacturing equipment. Specifically designed for PCB conformal coating curing and potting applications, the T140 delivers programmable heating up to 140 °C in a 260-litre full stainless steel chamber, with integrated RFID access management, programmable temperature profiles and a unique magnetic safety locking system.
The MP Dry Cabinet T140 High Temperature cabinet is engineered for electronics manufacturers requiring a dedicated, controlled-environment oven for conformal coating lacquer curing, potting compound curing and high-temperature component conditioning. Unlike standard industrial ovens, the T140 integrates advanced safety systems, RFID operator assignment, programmable temperature profiles and full traceability in a purpose-built design optimised for PCB assembly production environments.
The magnetic safety locking system of the MP Dry Cabinet T140 High Temperature can be programmed to release only when the chamber has cooled to a safe opening temperature, preventing operator access to hot components and ensuring a safe, compliant production process. The RFID system allows production managers to assign specific operators to the cabinet, ensuring only authorised personnel can run the curing cycle.
External dimensions: 825 × 2050 × 690 mm (including 350 mm exhaust). Internal dimensions: 630 × 780 × 440 mm. Internal volume: 260 litres. The T140 includes three stainless steel shelves adjustable in 20 mm steps (maximum 50 kg per shelf). The built-in electric exhaust flap safely removes solvent vapours and curing fumes generated during the conformal coating curing process.
The MP Dry Cabinet T140 High Temperature provides adjustable heating from ambient to 140 °C via the IDEC graphical touch display. A programmable temperature profile function allows operators to define multi-step curing cycles with precise time-at-temperature parameters, ensuring repeatable, validated conformal coating curing results. The Rotronic sensor (±0.8% RH, 0.1 K) provides accurate temperature monitoring throughout the curing cycle, with all data recorded by the integrated datalogger for process traceability.
The MP Dry Cabinet T140 High Temperature incorporates a unique magnetic locking system that can be configured to lock the cabinet door until the internal temperature falls to a user-defined safe level. This prevents accidental opening of the cabinet at elevated temperatures, protecting operators and preventing damage to partially-cured coatings. Configurable acoustic alarms notify operators of cycle completion, temperature deviations and other process events. An electric exhaust flap is integrated as standard to manage solvent vapour extraction during the curing cycle.
The MP Dry Cabinet T140 High Temperature supports optional RFID access management, enabling production managers to assign specific operators to the cabinet using their existing ID cards. All access events, temperature profiles and process data are recorded by the integrated datalogger and can be exported via USB or accessed via the LAN connection. Optional DyTrace software provides full process data management and MES integration for IPC-A-610 and ISO 9001 conformal coating process traceability.
Full stainless steel body, ESD-safe design, adjustable heating up to 140 °C, programmable temperature profile, electric exhaust flap, password-protected electromagnetic door lock with timer, three stainless steel shelves adjustable in 20 mm steps (50 kg each), Rotronic sensor (±0.8% RH, 0.1 K), IDEC graphical touch display, integrated datalogger, LAN connection, USB connector, configurable acoustic alarm, height-adjustable legs.
RFID access with electromagnetic door lock, slide-out shelves (35 kg or 100 kg), Rotronic HPS precision sensor (±0.5% RH), MPDRY5 drying unit, internal nitrogen atmosphere, optional status light, DyCabinet software and DyTrace software.
The MP Dry Cabinet T140 High Temperature is the specialist solution for PCB conformal coating lacquer curing (acrylic, silicone, polyurethane, epoxy and UV-cure variants), potting compound curing, high-temperature component pre-baking and any electronics manufacturing process requiring a precision, traceable, safety-equipped high-temperature cabinet. The T140 is compliant with IPC-CC-830, MIL-I-46058 and IEC 61086 conformal coating process requirements.
Contact the Prof-Tek specialist team for comprehensive MP Dry Cabinet T140 High Temperature technical documentation, pricing, lead times and availability across Australia. Prof-Tek is the authorised Australian distributor for MP Elektronik high temperature cabinet systems.nn
n
Prof-Tek Australia supplies the complete range of MP Elektronik dry cabinets for Australian electronics manufacturers. For pricing and technical specifications, contact our team or visit the MP Elektronik website.
