Specify a 50 L industrial ultrasonic cleaner around your component size, contamination and daily cleaning workload. ProfTek offers standard and configurable cleaning equipment, with options for adjustable ultrasonic power, degassing, heating and filtration.
Choose the appropriate configuration through an enquiry. Capacity, frequency, controls, accessories and delivery requirements are confirmed in your quotation.
Featured image: shown with optional filtration and an oil-separation tank. Final configuration is confirmed with your quotation.
The following configurations provide a starting point for equipment selection. Technical figures are indicative catalogue specifications; the final quoted build is confirmed for your requirements.
| Configuration | Indicative specification |
|---|---|
| Standard welded-tank | 700 W adjustable ultrasonic power; 900 W heating. Degassing and adjustable ultrasonic power. |
| Integrated industrial | 900 W adjustable ultrasonic power; 3 kW heating. Integrated configuration. |
| External-generator | 900 W adjustable ultrasonic power; 3 kW heating. Separate ultrasonic generator. |
| Filtration with oil-separation tank | 900 W adjustable ultrasonic power; 3 kW heating. Filtration circuit and oil-separation tank. |
The listed 50 L configurations have nominal tank dimensions of 600 × 300 × 300 mm. These are tank dimensions, not guaranteed usable basket clearance. Provide your largest component dimensions so the basket space and loading arrangement can be confirmed.
28 kHz or 40 kHz can be specified when ordering. These are alternative frequency selections; do not assume both are switchable on the same machine. Discuss your component material, contamination and required cleaning result with ProfTek when selecting the configuration.
The standard welded-tank configuration includes degassing and adjustable ultrasonic power. The equipment pictured shows the temperature and timer controls, degassing control and power-adjustment knob. Confirm the exact control functions for your selected build in the quotation.

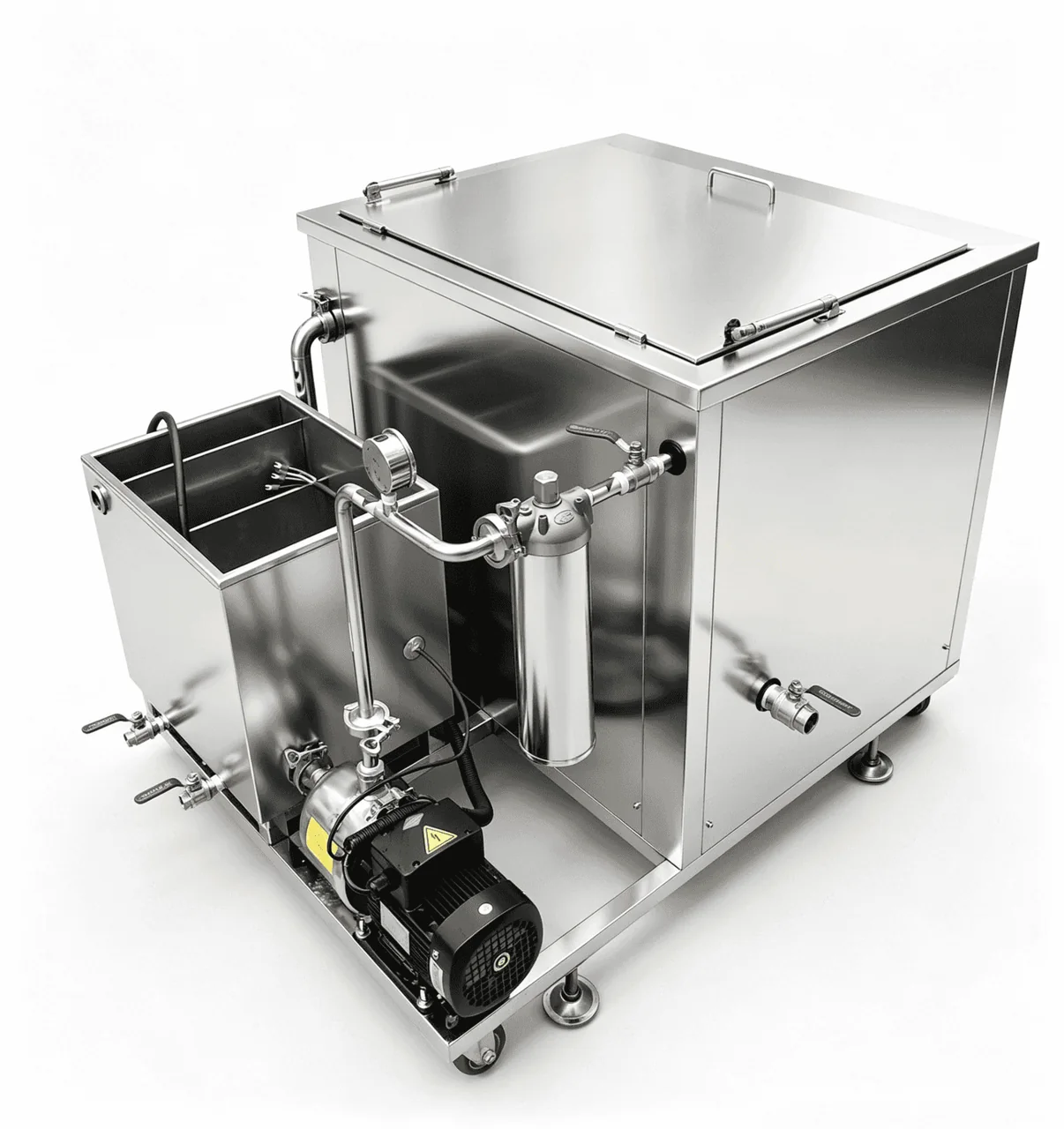

A 50 L configuration with filtration and a separate oil-separation tank is available for enquiry. The pictured system includes a circulation pump, filter housing and oil-separation tank. Specify the contamination and cleaning fluid so the appropriate arrangement can be assessed for your process.
Filter medium, filtration rating, circulation flow, fluid compatibility and maintenance requirements are confirmed for the selected system. The separation method and expected performance are confirmed against your process; no universal oil-removal result is assumed.
Discuss a 30 L cleaner, a larger system or a custom tank size with ProfTek. Other indicative capacities in the range include 34, 60, 95, 120, 139, 288, 360, 430 and 780 L. Each capacity and configuration is subject to quotation and technical confirmation.
If you need a specific item, capacity, basket arrangement, filter or electrical configuration, send an enquiry with your requirements. We can assess the available standard options or a customised build.
Request a configured quotation from ProfTek. Prices and lead times are provided against your selected equipment and requirements.
