If you’re scoping a precision cleaning system, the megasonic vs ultrasonic cleaning question comes up early, and the wrong answer can mean damaged parts, missed contamination, or a six-figure capital spend on the wrong gear. Both technologies use sound waves through a liquid to dislodge contaminants, but they operate at very different frequencies and behave in fundamentally different ways.
This guide breaks down where each technology shines, where it falls down, and how to decide for your specific application, with notes on what AU/NZ buyers need to factor in.
Choose a cleaning process against your part and cleanliness specification, not frequency alone. Particle removal, damage risk and throughput depend on the equipment, chemistry and operating conditions.
| Selection question | What to establish before choosing |
|---|---|
| What needs removing? | Identify the residue or particles and define the cleanliness acceptance test. |
| What must be protected? | List substrate materials, coatings, delicate features and components that cannot be immersed. |
| What process is feasible? | Confirm allowable chemistry, temperature, exposure time, rinsing and drying. |
| What must the line deliver? | Specify parts per hour, batch size, handling time and changeover requirements. |
| What will demonstrate success? | Compare representative samples before and after cleaning using agreed inspection methods. |
In a megasonic vs ultrasonic cleaning comparison this is the workhorse side of the debate, aggressive, well understood and economical.
Ultrasonic systems use transducers to vibrate a tank of cleaning solution at 20 to 80 kHz. At those frequencies, the alternating pressure forms microscopic vacuum bubbles in the liquid, they grow during the low-pressure half-cycle and violently collapse during the high-pressure half. This collapse, called cavitation, releases enough energy to physically blast contaminants off the surface of parts immersed in the bath.
Cavitation is aggressive, which is why ultrasonic is so effective. Removal of oils, particles and other residues depends on the cleaning chemistry, equipment and validated cycle. The trade-off is that the same energy that scrubs contaminants can pit soft metals, damage thin coatings, or break fragile features.

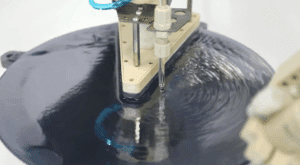

Megasonic cleaning uses higher-frequency acoustic energy transmitted through a liquid. Acoustic streaming and cavitation can both contribute; it is not accurate to assume that cavitation simply stops at megasonic frequencies.
Frequency, power, chemistry, temperature and exposure time all affect the result. For delicate substrates and fine particles, establish a process window using representative parts. Neither a frequency label nor a general particle-size claim guarantees acceptable cleaning without damage.
Ultrasonic earns its keep in heavy-duty industrial cleaning:
Confirm cleaning effectiveness and material compatibility through trials rather than selecting on visible contamination alone.
Megasonic cleaning is worth evaluating for precision applications such as:
Compare equipment formats and the complete process cycle. Cost, throughput and cleaning performance are application-specific, not fixed differences between the two technologies.
Modern systems increasingly combine both technologies. A common configuration is megasonic + ultrasonic in sequence, ultrasonic for bulk contamination removal, megasonic for the final sub-micron polish. Dual-frequency ultrasonic baths (e.g. 40 kHz + 80 kHz) are also useful when you have a mix of robust and moderately delicate parts to process.
If your throughput plan needs both regimes, talk to your supplier about a multi-stage line rather than one box trying to do everything.
Send a short description of the part and the cleaning problem. Include the material, dimensions, coatings and fragile features. Photographs or a drawing can help explain areas that are difficult to reach.
Describe the contamination and how you currently check cleanliness. Include the present cleaning method, required output per hour and any limits on chemistry, temperature or immersion. Tell us how the parts need to be rinsed, dried and handled after cleaning.
If you have a written cleanliness specification or an existing test report, include it with your enquiry. Agree how performance will be evaluated before selecting a system.
Explore ultrasonic and megasonic cleaning equipment, or request cleaning application advice.
ProfTek supplies both ultrasonic and megasonic cleaning systems to manufacturers across Australia and New Zealand, from benchtop units for laboratory and prototype work to industrial-scale automated lines. We can help you scope the right frequency, bath chemistry, and throughput configuration for your application, with the equipment manufacturer.
